Introduction
For product kits, the insert layout is often more important than the insert material itself.
A product kit may include bottles, jars, jewelry, chocolates, accessories, cards, cables, chargers, tools, or other items in different sizes and shapes. If the insert layout is not planned correctly, the products may move, scratch, tilt, collide, or look messy when the box is opened.
That is why custom insert packaging should not start with only one question: “Which material should we use?”
The better question is:
How should each product sit inside the box, and what structure can keep the full kit protected, organized, and ready for presentation?
At QX Packs, we manufacture custom packaging boxes and custom inserts for global brands, including rigid boxes, magnetic boxes, drawer boxes, folding cartons, packaging sleeves, EVA inserts, paperboard inserts, foam inserts, molded pulp inserts, and blister trays.
This guide explains how to plan custom insert layouts before sampling, especially for product kits with multiple items.
Why Insert Layout Matters Before Sampling
Many packaging problems happen before production starts.
The outer box may look correct, but the insert may not fit the real product. The cavity may be too tight, too loose, too shallow, or too deep. The product may be difficult to remove, or the lid may not close smoothly after the product is placed inside.
A good insert layout should answer these questions before sampling:
- How many products are inside one box?
- Which product should be shown first when the box is opened?
- Should the products stand upright or lie flat?
- Which item is fragile or heavy?
- Which product needs extra support?
- How much finger space is needed for removal?
- Will the products move during shipping?
- Does the layout match the box opening direction?
- Does the full kit look balanced when opened?
For example, a glass bottle may still break if the cavity is too shallow. A necklace may look unprofessional if it is not centered. A chocolate tray may look unfinished if the cavities are uneven. A charger and cable kit may look messy if the accessories are not separated clearly.
The insert layout decides both protection and presentation.
Start with Product Size, Quantity, and Placement
Before designing the insert, each product should be measured separately.
You should confirm:
- Product length
- Product width
- Product height
- Product weight
- Product shape
- Product material
- Quantity per set
- Required display direction
- Extra accessories inside the box
For bottles, the diameter and height are important. If the bottle has a cap, pump, dropper, or irregular top, the widest part must be measured.
For jewelry, the chain length, pendant size, card size, and fixing method should be confirmed.
For chocolate or food gift sets, the cavity size, tray depth, paper pad, sleeve structure, and food contact requirements should be checked.
For electronics accessories, the cable, charger, adapter, paper card, hook hole, and instruction leaflet may all affect the final layout.
A small product size difference can change the box inner size, insert depth, and final sample result.
That is why it is better to send product photos, dimensions, and a rough layout idea before asking for a final quotation.
How to Plan Cavities for Different Product Types
Different products need different cavity planning. The goal is not only to make the product fit, but also to make it easy to place, easy to remove, and safe during shipping.

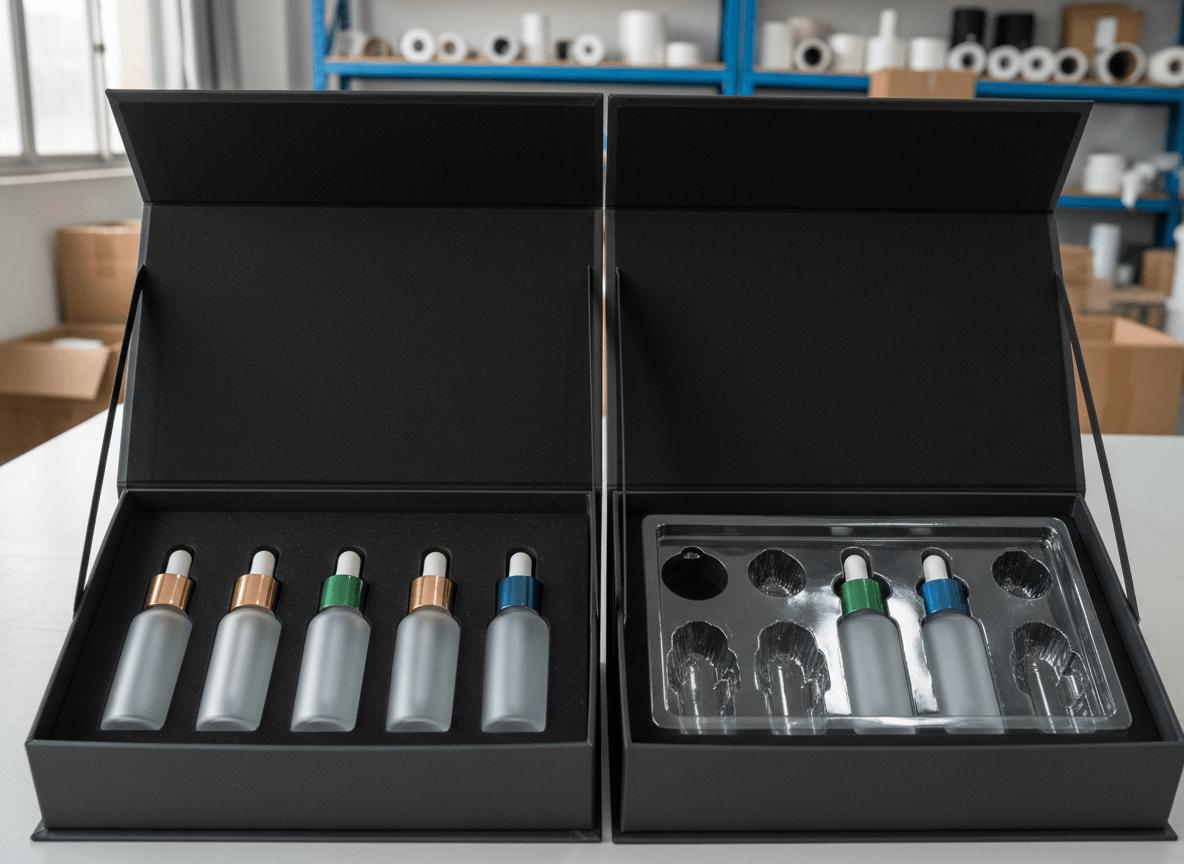

Glass Bottles and Beauty Product Sets
Glass bottles, serum bottles, peptide bottles, cosmetic jars, and skincare sets need stable positioning because they can collide during transport.
For bottle kits, the insert layout should consider:
- Bottle diameter
- Bottle height
- Cap or dropper shape
- Bottle weight
- Whether bottles should lie flat or stand upright
- Space between bottles
- Cavity depth
- Finger space for removal
- Risk of glass-to-glass contact
For small glass bottles, a shaped cavity can help keep each bottle in a fixed position. A magnetic rigid box can improve presentation if the product is positioned as a premium set.
If the bottle is fragile or heavy, the insert should not be too thin. The box height should also be checked carefully so the lid closes smoothly without pressing the product.
For beauty product kits, the layout should look balanced when opened. Products should not be crowded into one side unless the design intentionally uses that structure.

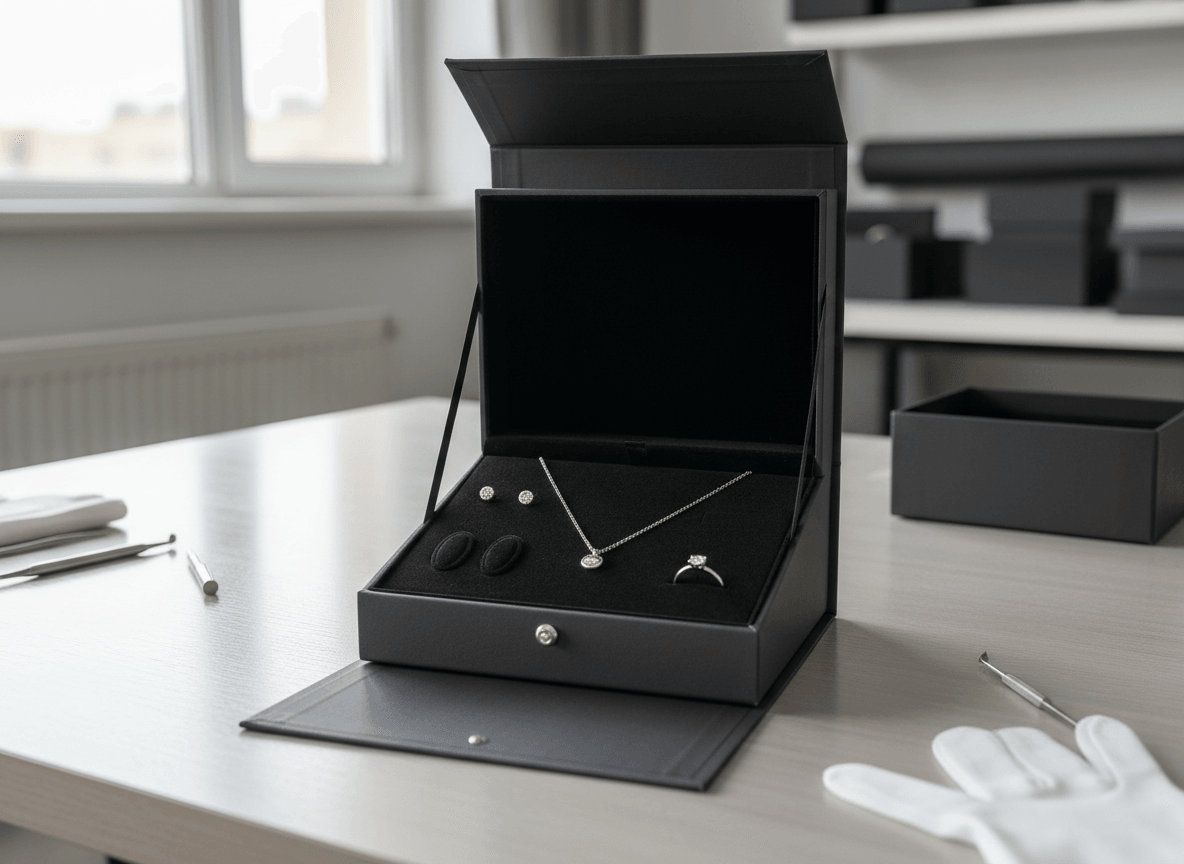

Jewelry and Necklace Packaging
Jewelry packaging is not only about protection. It is also about first impression.
For necklaces, bracelets, rings, watches, and fashion accessories, the insert layout should make the product look centered, secure, and premium.
A necklace box may need:
- A centered display position
- Soft product support
- Small fixing cuts for the chain
- Space for pendant positioning
- A magnetic book-style rigid box
- Smooth opening and closing
- Clean surface without visible rough edges
For necklace packaging, the cavity should not be too deep. If the product sits too low, the presentation becomes weak. If the fixing point is too loose, the necklace may move during shipping.
For watch or bracelet sets, the insert may need a raised cushion or shaped cavity. For small accessories, a paper card and insert base can be combined to control cost and improve display.
The key is to keep the jewelry stable while making the opening experience feel refined.

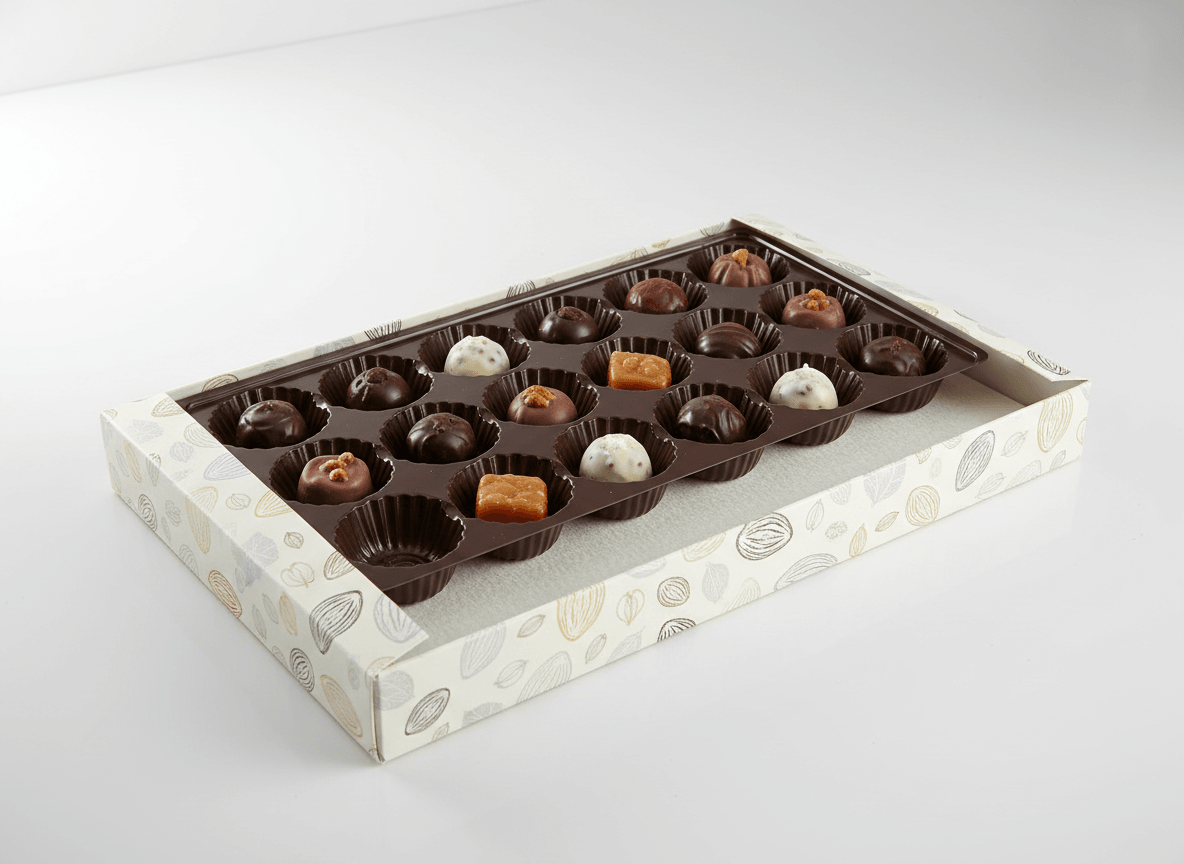

Chocolate and Food Gift Sets
Chocolate and food gift sets need clear separation, clean presentation, and suitable material selection.
For chocolate trays, the layout should consider:
- Number of pieces
- Chocolate shape
- Tray cavity depth
- Space between pieces
- Paper pad or liner
- Outer sleeve design
- Lid and base box or folding carton structure
- Food contact requirements
A shaped tray is commonly used for chocolate packaging because it can hold each piece clearly and keep the set organized.
A printed paper sleeve can help improve branding while controlling cost. A paper pad can add a cleaner presentation layer between the tray and the outer box.
For food-related packaging, material requirements should be confirmed based on the product, the market, and whether there is direct food contact.
The layout should look neat and easy to understand. If the tray has too much empty space, the product may look low value. If the cavities are too close, the chocolate may be difficult to remove or may deform.
Electronics Accessories and Small Devices
Electronics accessory kits often include products of different shapes, such as chargers, cables, adapters, USB accessories, batteries, phone accessories, paper cards, instruction sheets, and hooks.
For electronics accessory packaging, the insert layout should consider:
- Product shape and weight
- Cable folding method
- Charger position
- Paper card or instruction leaflet
- Retail display direction
- Hanging hole or hook structure
- Shipping protection
- Whether the box will be displayed on shelves
For retail packaging, the layout should make the main product easy to identify. Accessories should be separated clearly instead of being placed randomly inside the box.
For premium electronics gift sets, a stronger insert structure inside a rigid box may be used for better positioning and higher perceived value.
How Box Structure Affects Insert Layout
The insert cannot be designed separately from the outer box.
Different box styles affect insert depth, product position, opening experience, and cost.
Magnetic Rigid Boxes
Magnetic boxes are suitable for premium kits, jewelry, beauty products, bottles, gift sets, and high-value accessories.
When using a magnetic box, the insert layout should consider the opening direction. The product should look good immediately when the lid is opened.
The inner height also needs to be checked carefully. If the product sits too high, the lid may press the product. If it sits too low, the presentation may look weak.
Drawer Boxes
Drawer boxes are suitable for gift sets, jewelry, cosmetics, and small accessories.
The insert must fit the drawer smoothly. If the insert is too high, too tight, or not positioned correctly, the drawer may not slide well.
For drawer boxes, product height and pull-out direction should be confirmed before sampling.
Lid and Base Boxes
Lid and base boxes are useful for chocolate, gift items, cosmetics, candles, and premium retail products.
The insert should leave enough space for the lid to close without pressing the products. For fragile or food-related products, the tray position should also stay stable when the lid is removed.
Folding Cartons
Folding cartons are suitable for lighter products, skincare, electronics accessories, food-related packaging, and retail boxes.
They are cost-effective, but the insert structure must be planned carefully because folding cartons are usually thinner than rigid boxes.
If the product is heavy or fragile, the carton material, insert support, and shipping method should be checked together.
Packaging Sleeves
Paper sleeves are useful for chocolate trays, plain boxes, product bundles, and cost-controlled branding.
A sleeve does not provide strong protection by itself, so the tray, inner box, or insert must support the product properly.
Common Insert Layout Problems Before Sampling
Many insert problems can be avoided if the layout is checked before the sample is made.
The Product Moves Inside the Cavity
If the cavity is too large or too shallow, the product may move during shipping.
This is common for bottles, glass items, electronics accessories, and product kits with different weights.
The Product Is Too Hard to Remove
If the cavity is too tight or there is no finger space, the customer may struggle to take the product out.
This creates a poor user experience even if the product looks secure.
The Box Cannot Close Properly
If the insert, product height, and box depth are not calculated together, the lid may not close smoothly.
This is especially important for magnetic boxes, drawer boxes, and lid and base boxes.
The Layout Looks Unbalanced
If all products are placed randomly or pushed to one side, the box may look unfinished.
For premium packaging, the layout should create a clean and balanced presentation.
The Artwork Is Confirmed Too Early
If the artwork is completed before the insert layout is finalized, changes in box size or product position may affect the whole design.
The better workflow is:
Confirm product size → confirm insert layout → confirm box structure → make sample → adjust artwork → approve production.
How to Confirm the Final Insert Layout Before Sampling
Before making a custom insert sample, the layout should be checked step by step. This helps avoid repeated sample adjustments and unnecessary cost.
The key points to confirm include:
- Whether each product cavity matches the real product size
- Whether the product can be placed and removed easily
- Whether fragile items have enough space and support
- Whether the insert height works with the outer box depth
- Whether the lid, drawer, or sleeve can close smoothly
- Whether the product display direction looks correct when opened
- Whether the layout allows enough space for branding, cards, or accessories
- Whether the structure is suitable for the target order quantity
For product kits, it is better to test the real products inside the sample instead of approving the insert only from photos. A small size difference can affect the cavity fit, box height, and final presentation.
What Details to Send Before Quotation
To get a useful quotation and structure suggestion, do not only send a product name.
Send the real details.Information NeededWhy It MattersProduct sizeDetermines cavity size and box inner sizeProduct weightAffects insert support and protectionProduct photosHelps check shape, surface, and risk pointsNumber of items per kitDecides the full insert layoutPreferred product positionHelps plan the opening presentationBox style preferenceAffects insert depth and structureTarget order quantityAffects unit cost and mold costShipping methodHelps decide protection levelBranding requirementsAffects printing, finishing, and sleeve designBudget levelHelps choose the most practical structure
If you are not sure which insert layout is best, send the product size, quantity, and photos first. A practical layout suggestion can usually be made before sampling.
Sample Checking Checklist for Custom Inserts
Before approving a custom insert sample, check the sample with the real products inside.
Do not approve the insert only by looking at photos.
Use this checklist:Check ItemWhat to ConfirmProduct fitEach product fits the cavity correctlyProduct movementProducts do not move too much when lightly shakenRemovalProducts can be taken out easilyCavity depthProducts are not too high or too lowBox closingThe lid or drawer closes smoothlySurface finishInsert surface is clean and acceptableLayout balanceThe full kit looks organized when openedEdge qualityCavity edges are clean enoughArtwork positionLogo, text, and printing align with the structureShipping riskFragile products have enough support
For glass bottles, chocolates, jewelry, and electronics accessories, this step is especially important.
A small layout problem in the sample stage can become a much bigger problem in mass production.
Conclusion
Custom insert packaging for product kits should start with layout planning, not only material selection.
Before sampling, you need to confirm product size, product quantity, placement direction, cavity depth, box structure, removal space, and shipping risk.
A well-designed insert layout can make the packaging look cleaner, protect the products better, and reduce problems during production.
QX Packs manufactures custom packaging boxes and inserts for global brands, including magnetic rigid boxes, drawer boxes, folding cartons, packaging sleeves, EVA inserts, paperboard inserts, molded pulp inserts, foam inserts, and blister trays.
If you are developing packaging for bottles, jewelry, chocolate, skincare products, electronics accessories, or gift sets, send us your product size, quantity, photos, and rough layout idea. We can help suggest a practical insert layout before sampling.
Need Help Planning Your Insert Layout?
Send us your product size, quantity, and kit layout. QX Packs can suggest a practical insert structure before sampling.
FAQ
Q1: What information do I need to send before designing a custom insert layout?
You should send product size, product weight, product photos, quantity per set, preferred box style, and a rough layout idea. These details help confirm cavity size, box inner size, and product positioning before sampling.
Q2: Can one insert layout hold different product sizes?
Yes. A custom insert layout can include different cavity sizes for bottles, jewelry, chocolates, electronics accessories, or cards. Each cavity should be designed according to the real product size and removal method.
Q3: Why does the outer box size depend on the insert layout?
The insert thickness, cavity depth, and product height all affect the final box size. If the insert is designed after the box size is fixed, the product may sit too high, move inside the box, or stop the lid from closing properly.
Q4: Should I approve the insert sample by photo only?
No. For product kits, it is better to test the real products inside the sample. Photos can show the appearance, but they cannot fully confirm product fit, removal space, shaking movement, or closing condition.
Q5: Can QX Packs suggest the insert layout before sampling?
Yes. Send us your product size, quantity, photos, and preferred box style. QX Packs can suggest a practical insert layout and box structure before sample development.
