Introduction
Custom medal boxes need to do more than create an attractive presentation. They must hold the medal securely, organize the ribbon or neckband, protect the medal surface, and make the award easy to remove and display.
This is especially important for sporting events, corporate awards, commemorative programs, schools, associations, government projects, promotional campaigns, and premium gift collections.
Before choosing materials or logo finishes, packaging buyers should first confirm the medal dimensions, weight, ribbon layout, presentation direction, and quantity per box. These details determine the internal space, insert cavity, box height, and suitable structure.
This guide explains the main decisions to make before requesting a quotation for custom medal boxes.
What Does a Medal Presentation Box Need to Do?
A successful medal box normally needs to perform four functions:
- Hold the medal firmly enough to reduce movement.
- Organize the ribbon without creating excessive bulk.
- Present the front of the medal in the correct direction.
- Allow the recipient to remove the medal without difficulty.
These requirements are connected. For example, a deep cavity may hold a heavy medal securely but make it difficult to remove. A shallow cavity may create a cleaner presentation but allow the medal to move during handling.
The ribbon also affects the result. If it is folded under the medal without enough space, it may push the medal upward or prevent the lid from closing correctly.
The structure, insert and ribbon layout should therefore be planned as one complete packaging system.

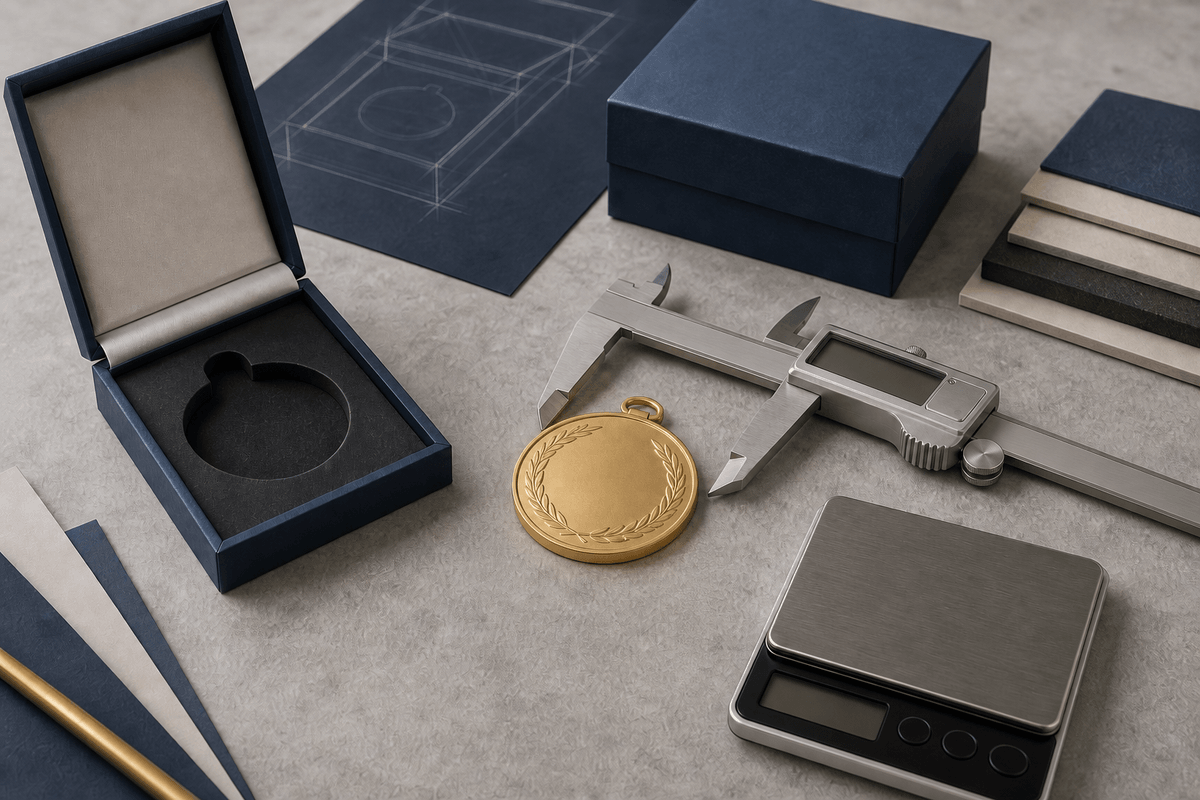

Confirm the Medal Dimensions and Weight First
The medal diameter alone is not enough for insert design or quotation.
Before developing the packaging, provide the following details:
- Medal diameter, width and height
- Medal thickness
- Medal weight
- Shape, including any irregular edges
- Position and size of the ribbon loop
- Ribbon width and total length
- Number of medals in each box
- Required presentation direction
For a round medal, the diameter and thickness are the main dimensions. For star-shaped, shield-shaped or custom-contour medals, a drawing, clear top-view photograph or physical sample is more useful.
Weight also matters. A heavier medal may require a denser insert or additional support beneath the cavity. A soft insert selected only for appearance may compress too much and allow the medal to tilt.
If the medal has a raised logo, enamel surface, polished metal area or projecting edge, this should also be shown in the product photos. The insert should hold the medal without placing unnecessary pressure on delicate surface details.
Plan the Ribbon or Neckband Layout
The ribbon is often the most overlooked part of a medal packaging project.
A long ribbon can occupy more space than the medal itself when it is folded. Without a defined layout, it may create uneven height, cover the medal or become trapped between the lid and base.

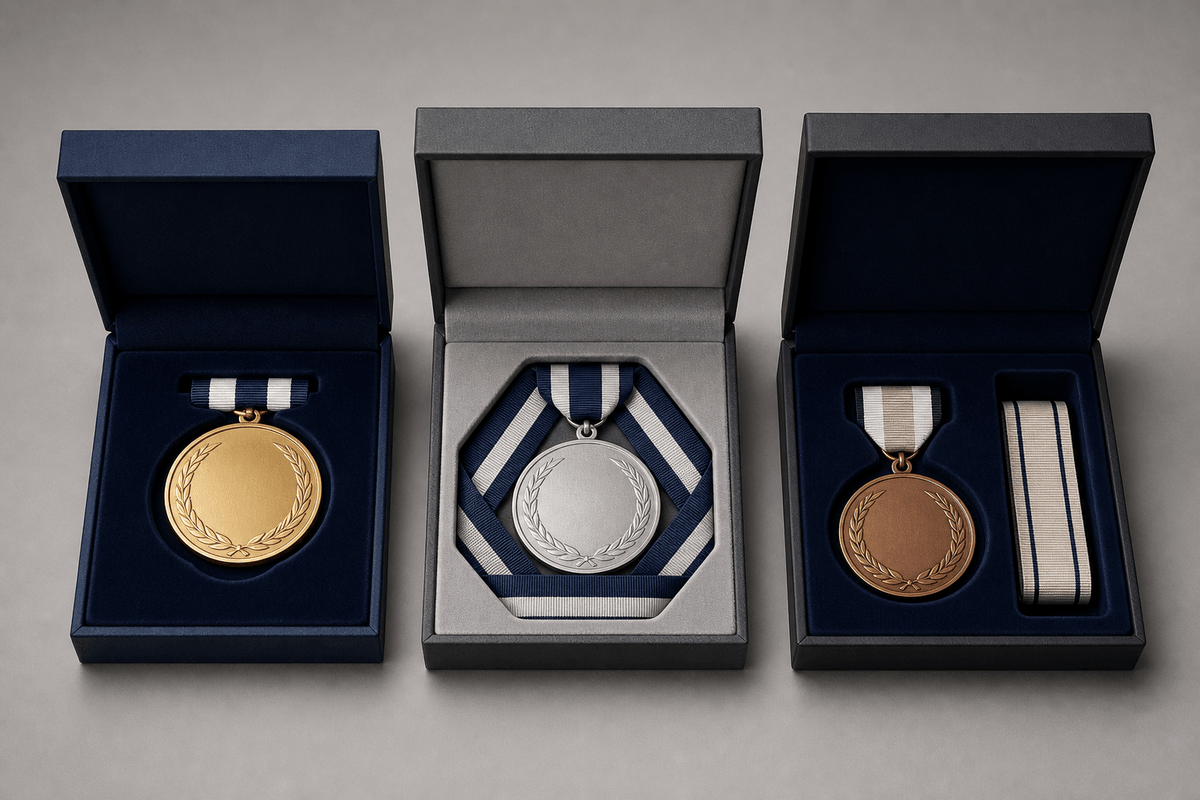

Common ribbon layouts include:
Ribbon Stored Under the Medal
The ribbon is folded into a recessed area below the medal cavity.
This creates a clean presentation because the medal remains visible when the box is opened. However, the cavity must provide enough depth for the folded ribbon without pushing the medal upward.
Ribbon Stored Around the Medal
The ribbon is folded or arranged around the central medal cavity.
This may work for larger boxes or decorative layouts, but the available space and folding sequence should be confirmed during sampling.
Separate Ribbon Compartment
The medal and ribbon are placed in separate fitted areas.
This layout can create better organization and is useful when the ribbon is removable, especially for presentation sets or projects that include additional accessories.
Medal and Ribbon Displayed Together
Part of the ribbon remains visible behind or above the medal.
This can strengthen the presentation for ceremonies and commemorative projects, but the visible ribbon length and attachment direction must be consistent during packing.
A simple top-view layout photograph showing how the buyer wants the medal and ribbon arranged can prevent major misunderstandings before sampling.

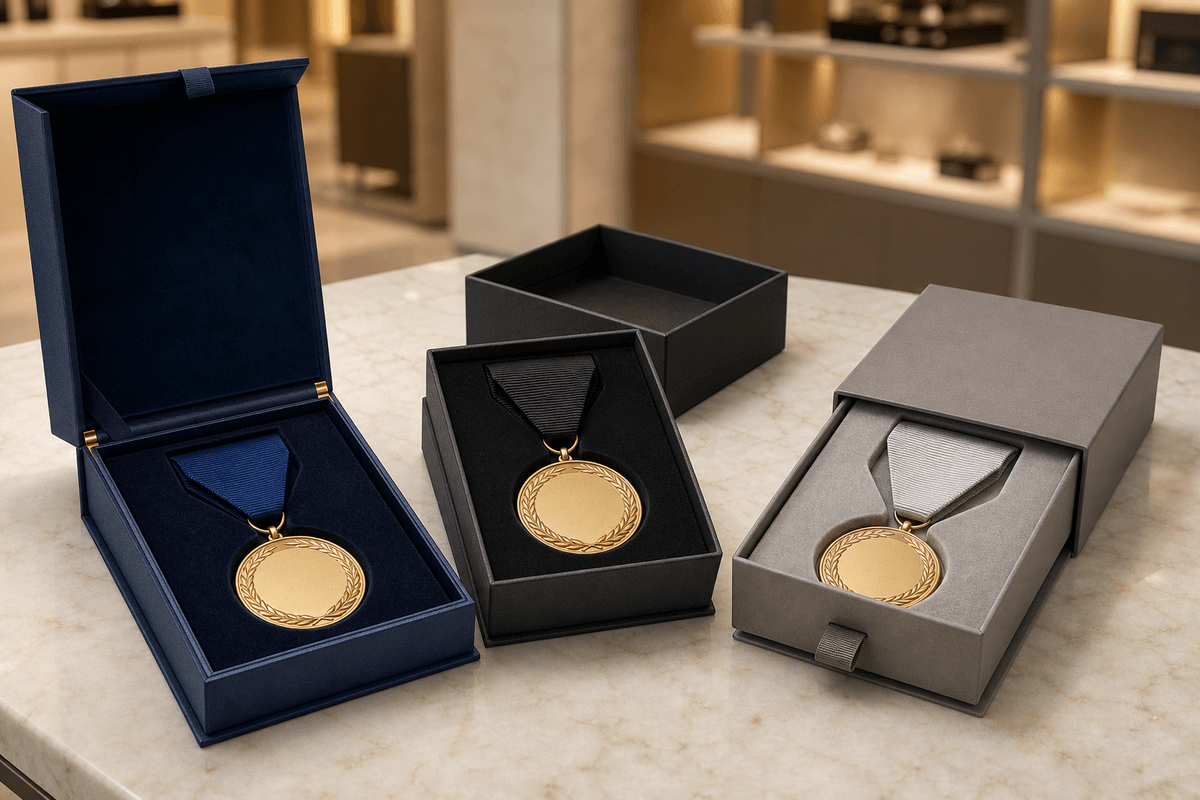

Compare the Main Medal Box Structures
Different structures create different opening experiences, internal depths and packing requirements.
Hinged or Book-Style Medal Boxes
A hinged rigid box keeps the lid and base connected. It provides a formal presentation and allows the medal to remain visible while the box is open.
This structure works well for awards, ceremonies, commemorative medals and premium presentation projects. The hinge, opening angle and lid lining should be reviewed during sampling.
Lid and Base Medal Boxes
A lid and base box uses two separate rigid pieces. It has a clean, classic structure and can accommodate different insert depths.
It is practical when the project requires a simple premium appearance. Buyers should confirm how tightly the lid should fit and whether the recipient needs to remove it easily during a ceremony.
Learn more about custom lid and base boxes.
Drawer-Style Medal Boxes
A drawer box uses an outer sleeve and sliding inner tray. It creates a controlled reveal and offers flexible space for a medal, ribbon, certificate or small accessory.
The tray should include a practical pull ribbon, thumb notch or other opening detail. The insert must also be positioned so that it does not interfere with the movement of the tray.
See additional drawer-style box structures.
Multi-Medal Presentation Boxes
Projects involving two or more medals require a balanced cavity layout and enough separation between metal surfaces.
The buyer should provide the number, dimensions and weights of all medals, as well as their preferred display order. If medals have different shapes or sizes, each cavity should be designed individually.
Need help comparing structures? Send your medal diameter, thickness, weight, ribbon size, quantity and reference photos to QX Packs on WhatsApp for a practical structure suggestion.
Choose a Suitable Insert
The insert affects fit, protection, presentation and packing efficiency.
EVA Insert
Precision-cut EVA provides firm support and works well for heavier medals or projects requiring a clearly defined cavity.
The cavity depth, density and finger-access area should be confirmed so the medal remains secure but can still be removed comfortably.
Protective Foam Insert
Foam provides cushioning and can be shaped for different medal sizes. Its density should be selected according to the medal weight and required presentation.
Very soft foam may compress under a heavy medal, while overly firm foam may make insertion and removal difficult.

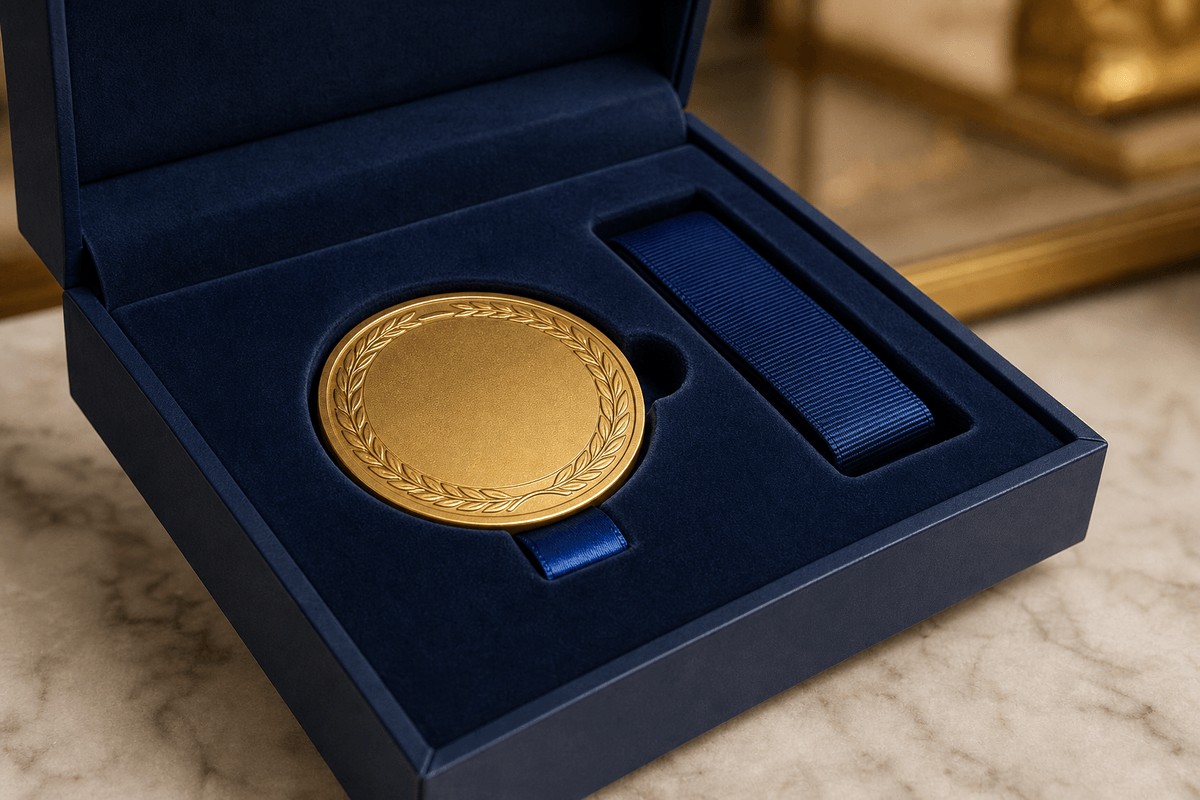

Velvet-Covered Insert
A velvet or flocked surface can create a softer, more formal appearance. It is usually applied over a supportive insert material rather than used as the structural support by itself.
Color selection should consider the medal finish, ribbon color and brand presentation.
Paperboard Insert
A folded paperboard insert may be suitable for lighter medals, simpler promotional projects or packaging concepts that prefer a paper-based internal structure.
The folded construction must still provide enough support and prevent the medal from shifting into the ribbon area.
QX Packs can develop fitted custom packaging inserts together with the outer medal box.
Make the Medal Easy to Remove
A secure fit should not make the medal difficult to lift out.
Useful removal details may include:
- Finger notches beside the medal cavity
- A narrow lifting ribbon under the medal
- A slightly exposed medal edge
- A removable insert tray
- Separate access to the ribbon compartment
These details should be tested with the actual medal. A cavity that looks correct in a drawing may feel too tight after the lining material and production tolerance are included.
The box should also have enough internal lid clearance. The medal, folded ribbon and insert surface should not press against the lid when the box is closed.
Check Presentation and Shipping Requirements
A presentation box may look secure when placed flat but still allow movement during packing and transportation.
During sample review, check:
- Whether the medal remains in its intended position
- Whether the ribbon stays folded and organized
- Whether metal surfaces rub against the box or accessories
- Whether the insert lifts, compresses or changes position
- Whether the lid closes without pressure
- Whether the recipient can open the box and remove the medal easily
- Whether the box needs an additional sleeve, protective bag or shipping carton
The appropriate test depends on the product, box structure, sales channel and shipping method. Packaging for a local awards ceremony may have different requirements from medal sets shipped internationally to distributors or event participants.
Medal Box Sample Checklist
Before approving mass production, review the sample with the actual medal and ribbon whenever possible.
Confirm the following:
- The medal cavity matches the final medal size and shape.
- The cavity depth supports the medal without hiding important details.
- The medal can be removed without scratching or excessive force.
- The ribbon fits the intended compartment or folding layout.
- The lid closes correctly with the medal and ribbon packed inside.
- The medal does not move excessively during normal handling.
- The opening direction presents the front of the medal correctly.
- The box material, color, logo and finish match the approved specification.
- Any certificate, card or accessory has a defined position.
- The packing method is practical and repeatable for production.
Photographs or a short packing video can help document the approved arrangement for the production team.
What to Provide for a Custom Medal Box Quote
For a more useful quotation, send:
- Medal diameter, thickness and weight
- Medal shape or technical drawing
- Ribbon width and length
- Number of medals per box
- Preferred box structure
- Required box quantity
- Material or color preference
- Logo printing and finishing requirements
- Insert material or presentation preference
- Certificate, card or accessory requirements
- Product photos and reference packaging
- Target market, event type or sales channel
If the box structure has not been selected, send the medal and ribbon information first. QX Packs can compare suitable custom rigid box and handmade gift box options based on the project.
Frequently Asked Questions
What is the best box structure for a medal?
There is no single structure for every project. Hinged boxes provide a formal open display, lid and base boxes offer a classic presentation, and drawer boxes create a slide-out reveal. The suitable choice depends on the medal size, ribbon layout, presentation goal, budget and packing method.
Which insert material is suitable for a heavy medal?
A firmer EVA or supportive foam insert is often considered for heavier medals, but the appropriate density and cavity depth should be tested with the actual product. The surface can be covered or lined when a softer presentation is required.
Can the medal and ribbon be packed in the same cavity?
Yes, but the folded ribbon needs enough space beneath or around the medal. If the ribbon creates excessive thickness, a separate recessed area or compartment may provide a cleaner and more stable layout.
Can one box hold multiple medals?
Yes. Each medal should have its own fitted position, with enough separation to prevent metal surfaces from touching. Provide the dimensions and weights of every medal before the insert layout is developed.
Why is an actual medal sample helpful?
The actual medal allows the manufacturer to check cavity fit, weight support, removal space, surface contact and ribbon arrangement. If a physical sample is unavailable, accurate dimensions, weight, drawings and clear photos should be provided.
Start Your Custom Medal Box Project
A practical medal box starts with the medal—not with the decoration.
Confirm the medal size, thickness, weight, ribbon layout, presentation direction and quantity before selecting the outer structure and insert. This helps create a box that presents the award clearly, supports the product and can be packed consistently.
QX Packs is a custom packaging manufacturer in Shenzhen, China, serving B2B packaging projects since 2004.
For structure and quotation support, share your medal dimensions, weight, ribbon size, quantity, preferred box style, material and finishing requirements, insert needs, product photos and target market through WhatsApp or the QX Packs contact page.
